03888902 Keith® Walking Floor RFII & Workhorse Switching Valve Assembly

n1000904.pdf

Keith® Walking Floor RFII & Workhorse Switching Valve Assembly

#123 in second picture

Includes
#124 - Body switching Valve - 04504601
#125 - End Cap Right Switching Valve-04504701
#126 - End Cap Left Switching Valve-04504801
#127 - Poppet Switching Valve - 03718901
#128 - Ring Poppet Switching Valve - 03718801
#129 - Rod Control Switching Valve - 01335501

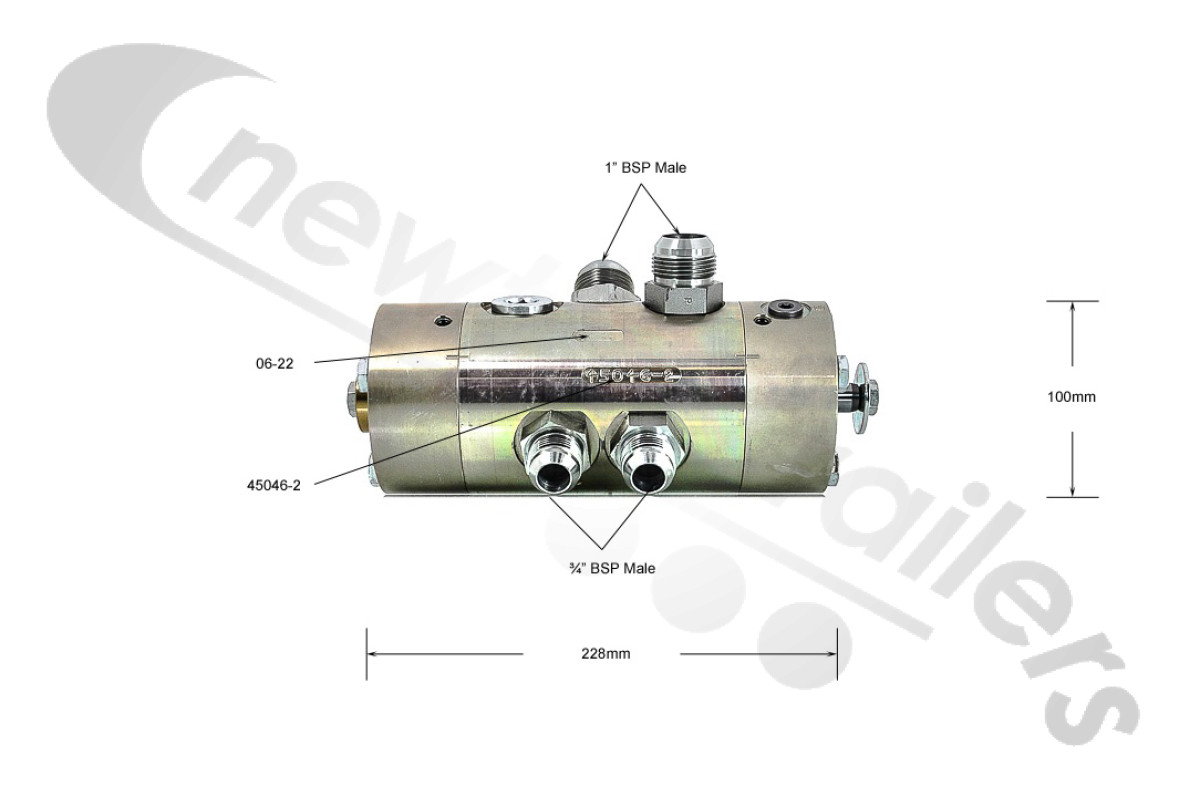

Switching Valve Assembly (Metric KRFII) For Running Floor AND Workhorse systems.
This valve switches the oil pressure from one side of the cylinder to the other. Therefore once the system has driven 1st then 2nd then 3 rd cylinder the cross drive switches the switching valve and the oil flows to the other side. Then all cylinders move together back to the start and the switching valve then switche back.

The threaded rod is sold separately.

Alternate Part Number SP 7177
